Figure 1: High-Speed Vortex Jetting Flow Dynamics & Water Surface Turbulence in Rimless Ceramic Toilet.
1. Engineering Control Matrix: Rimless Vortex Dynamics & Hygiene
Modern rimless sanitary ware utilizes computational fluid dynamics (CFD) to channel water into a high-velocity horizontal vortex that scrubs 100% of the inner bowl surface without splashover or aerosol plume dispersion.
| Hydraulic parameter | Testing methodology & standard | Performance threshold |
|---|---|---|
| Bowl Surface Cleansing | Sawdust & marker line wash test (EN 997) | 100% sweep; residual unwashed area < 2 cm² |
| Solids Evacuation (MaP) | Maximum Performance (MaP) soybean paste test | ≥ 800 g – 1,000 g solid waste single flush clear |
| Aerosol Plume Reduction | Laser particle imaging velocimetry (PIV) | ≥ 85% reduction in bio-aerosol droplet ejection |
| Trapway Glaze Vitrification | 360° internal robotic glaze spray coating | 0.8 mm fully glazed bore; roughness Ra ≤ 0.2 µm |
| Water Consumption Ratio | Calibrated dual-flush water meter test | 4.5L full / 3.0L reduced (avg. ≤ 3.5L per cycle) |

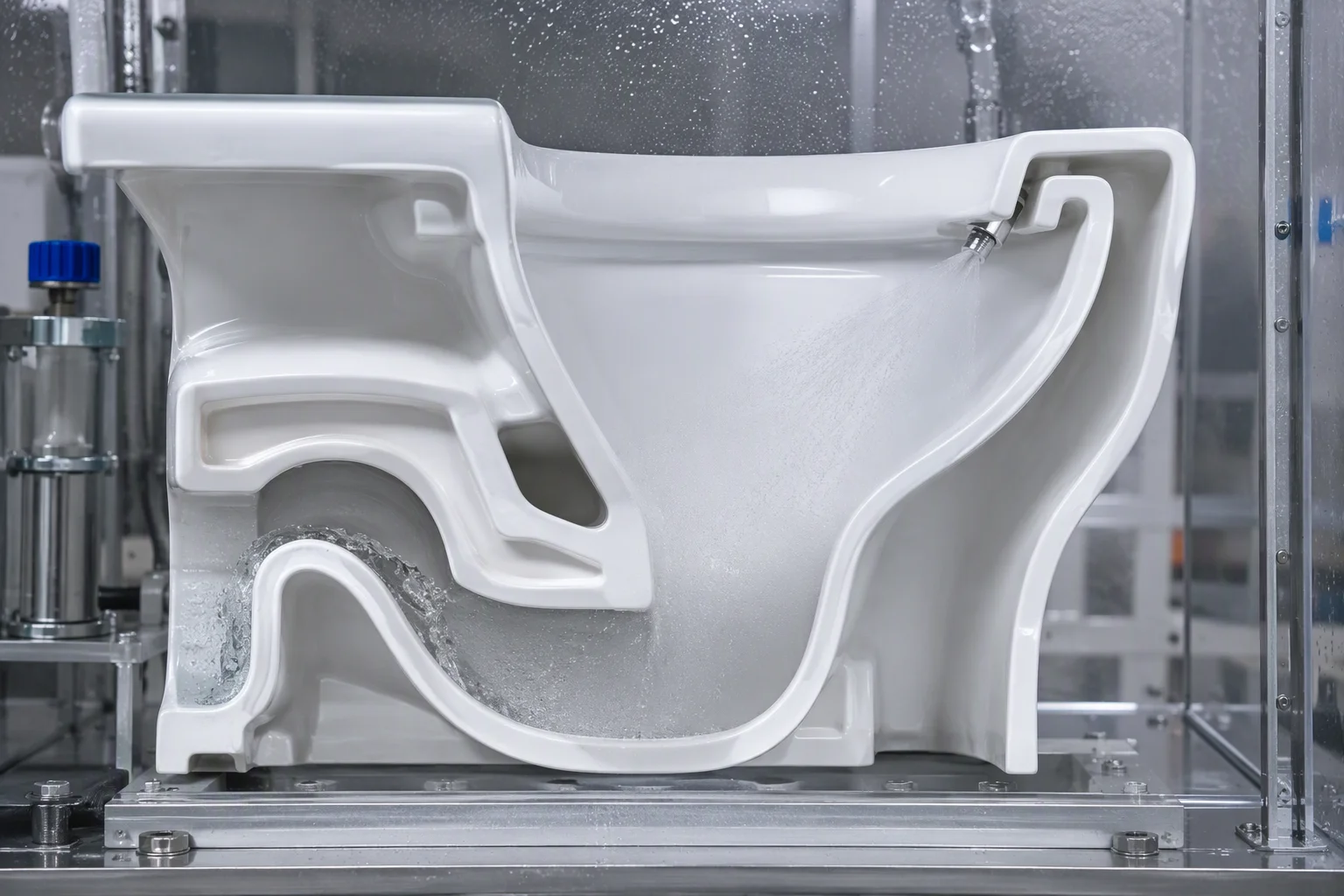

Figure 2: Fully Glazed Siphon Trapway Cross-Section & Precision Water Guide Channel Architecture.
2. Aerodynamic & Hydraulic Advantages of Rimless Design
- Elimination of Hidden Cavities: Traditional boxed rims harbor mineral scale and bacterial colonies. Rimless open-ledge geometry provides 100% visible surface cleaning.
- Optimized Jet Geometry: Dual side jets accelerate water into a laminar rotational vortex that maximizes kinetic scouring pressure across the bowl.
- Fully Glazed Trapway: Robotic glazing inside the entire internal siphon path ensures zero fecal snagging and eliminates wastewater stain buildup.
