An authoritative export logistics and packaging engineering guide defining 7-ply heavy corrugated cartons, custom molded EPS corner cushioning, ISTA-3A 10-drop testing standards, and container payload stacking matrices for fragile ceramic sanitary ware.
This engineering guide is published by Yingjie Bath for commercial procurement teams, developers, and MEP consultants. Explore our complete collection in the Yingjie Bath product directory and turnkey hotel bathroom solutions.

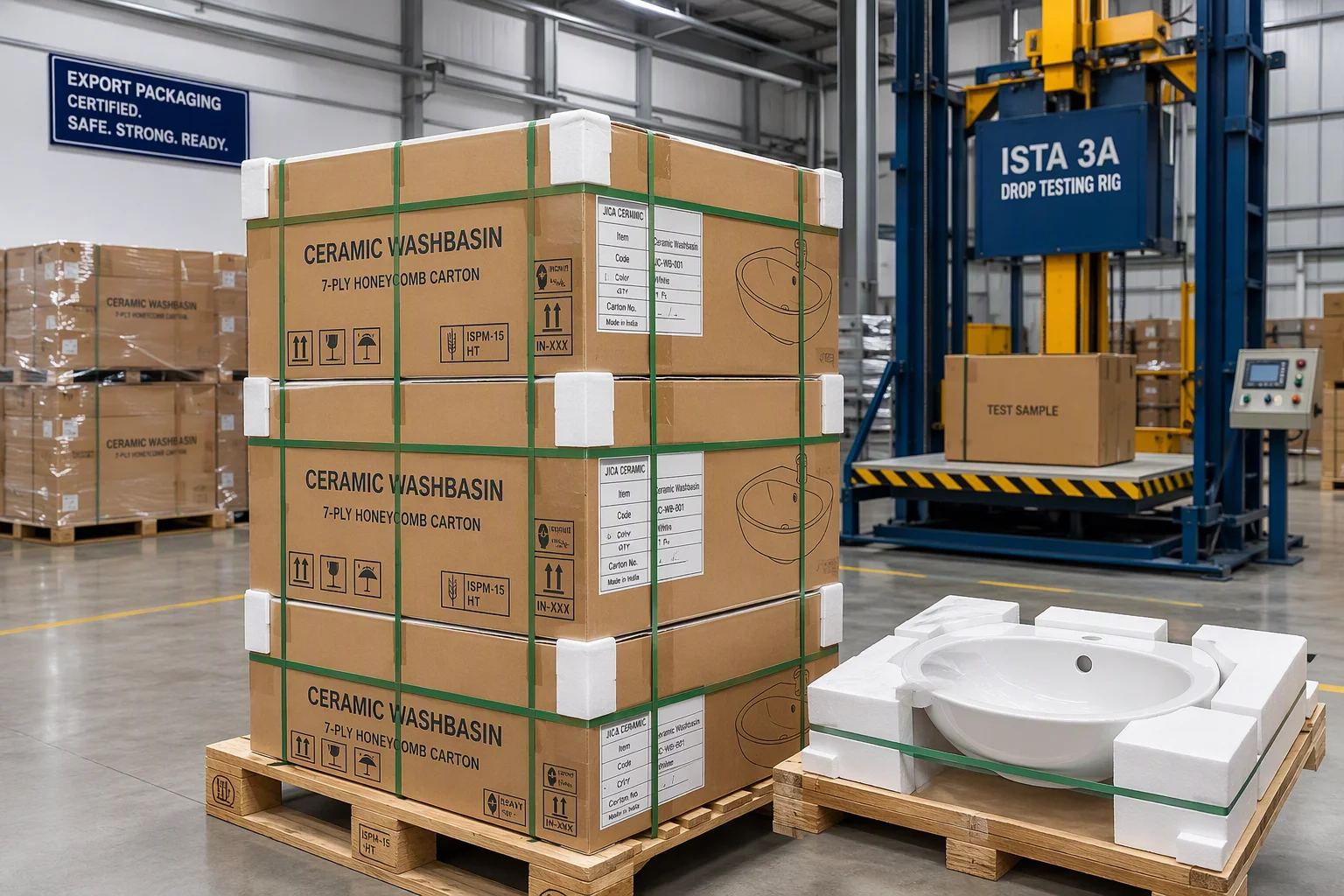

Figure 1: Export Palletized Staging of Heavy-Duty Honeycomb Packaged Ceramic Sanitary Ware with PET Strapping.
1. Export Logistics & ISTA-3A Packaging Protocol
Vitreous china sanitary ware is inherently brittle. Containerized export shipments endure multi-axis vibration, maritime humidity, and repeated intermodal transshipment shocks. Yingjie Bath enforces certified ISTA-3A packaging engineering standards.
| Packaging parameter | Specification standard | Quality requirement |
|---|---|---|
| Carton Board Grade | 7-Ply / 5-Ply heavy honeycomb kraft board | Bursting strength ≥ 1,800 kPa; Edge crush ≥ 9.5 kN/m |
| Internal EPS Cushioning | Custom-molded high-density 360° EPS foam | Density ≥ 20 g/L; minimum 25 mm wall buffer thickness |
| ISTA-3A Drop Test | 10-drop sequence (corners, edges, faces from 760 mm) | Zero ceramic hairline crack or chipping after impact |
| Pallet Stacking Integrity | ISPM-15 fumigated heat-treated wooden pallets | Max 4 tiers; interlocking corner angle board + PET straps |
| Moisture Barrier | PE stretch hood wrap + silica gel desiccant packs | 100% weather-shielded during ocean transit |

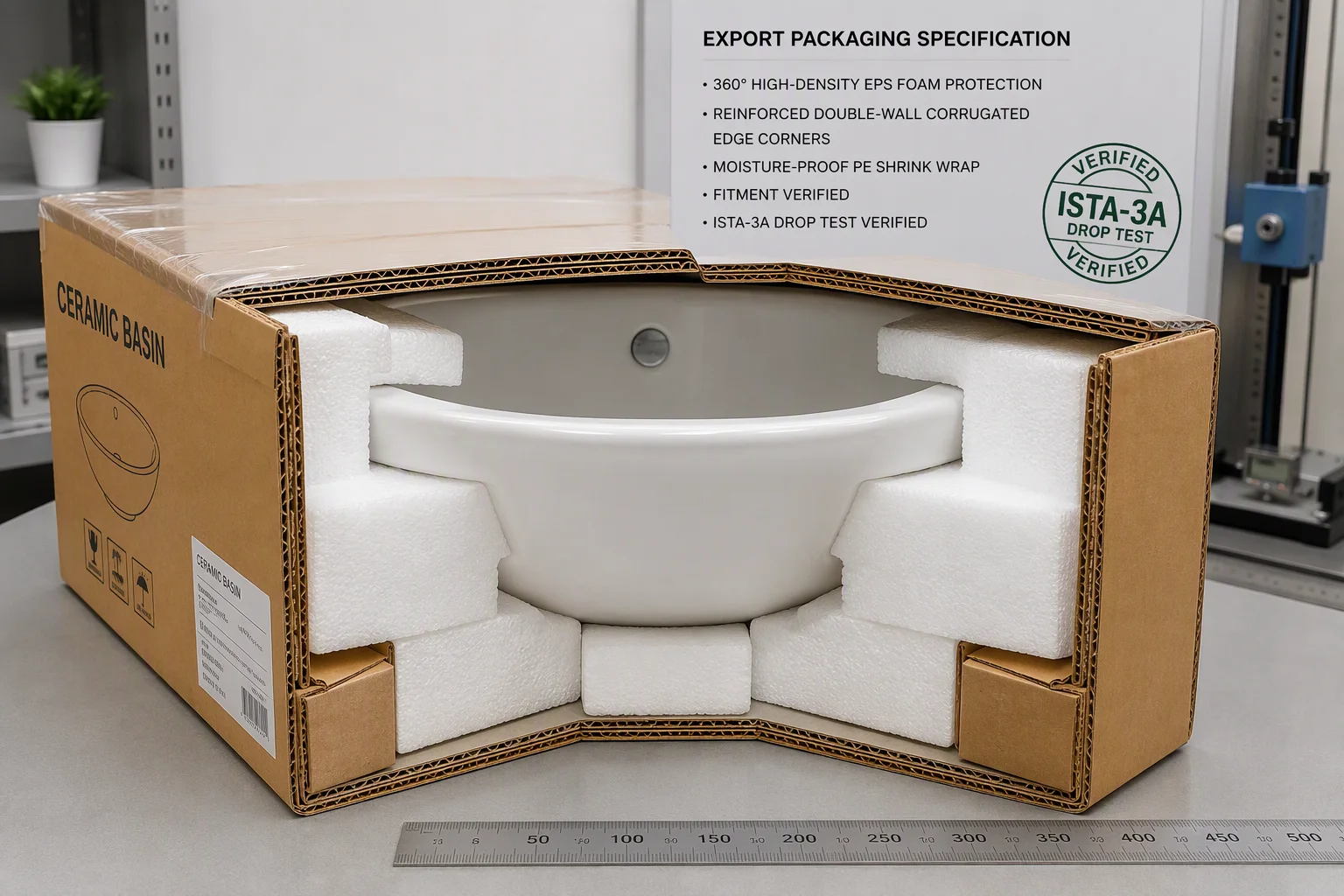

Figure 2: 360-Degree Molded High-Density EPS Protective Buffer and Multi-Layer Corner Impact Shielding.
2. Container Loading Optimization & Breakage Prevention
- Payload Volume Matching: Optimize carton dimensional modularity to achieve > 95% volumetric fill efficiency in 40ft High Cube (40HQ) containers.
- Dunnage Airbag Bracing: Place heavy-duty inflatable kraft dunnage airbags between pallet rows to prevent transverse shifting during vessel pitching.
- Weight Distribution: Ensure uniform axle load distribution according to destination road transport weight limits.
Related Engineering Articles
- Sanitary Ware Pre-Shipment Inspection Report Checklist - AQL batch verification standards
- Ceramic Basin Pop-Up Waste and Overflow Alignment Troubleshooting - complete drainage path inspection
- Ceramic Sanitary Ware Acoustic and Flushing Noise Level Standards - soundproofing acoustic standards
Frequently Asked Questions
What is the breakage rate for Yingjie Bath export container shipments?
By applying ISTA-3A certified 7-ply honeycomb packaging with 360° molded EPS inserts and palletized stretch wrapping, Yingjie Bath maintains an ocean freight breakage rate of less than 0.15% across global port destinations.
How many ceramic basins fit in a 40HQ container?
Depending on the basin geometry (undermount, countertop, or art basin), a 40HQ container holds between 1,200 and 1,800 units with optimized palletization and protective angle boards.
