How to Install an LED Bathroom Mirror: A Contractor's Guide to Precision Mounting
Learn the technical requirements for wall type assessment, Z-bar leveling, and electrical integration for high-end LED mirrors.

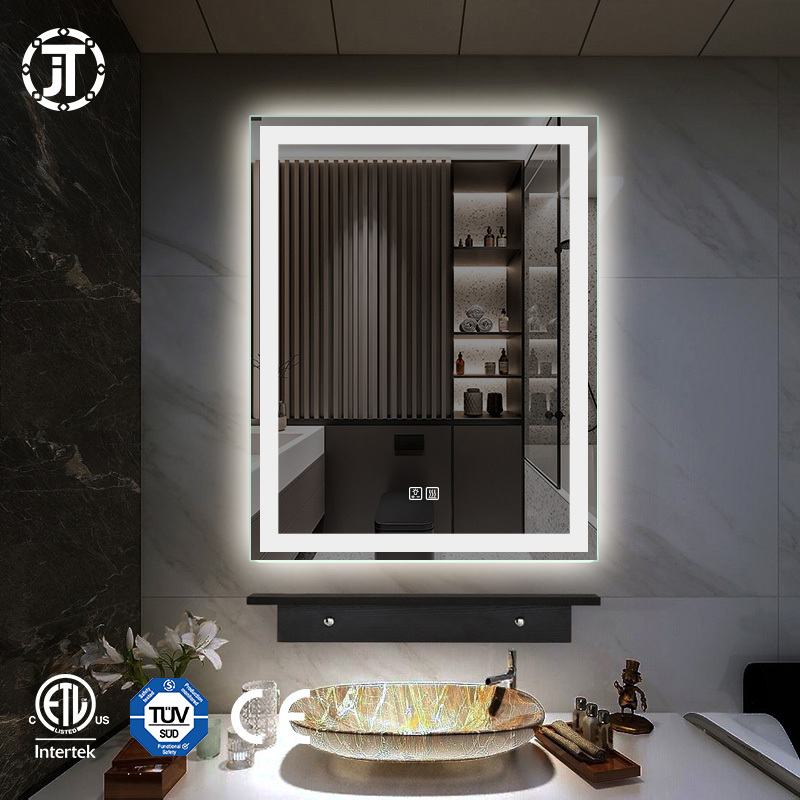

Substrate Assessment & Anchor Load Ratings
The integrity of an LED mirror installation depends entirely on the substrate. With mirror weights ranging from 15 kg to 40 kg, contractors must match the fastening system to the wall composition to prevent long-term sagging or failure. For commercial high-rise projects, we recommend using 5mm copper-free silver glass for its superior oxidation resistance and CRI 90+ LEDs for professional-grade color accuracy.
| Wall Type | Anchor Type | Safety Margin |
|---|---|---|
| Drywall | SnapSkru / Toggle Bolt | 3:1 Ratio |
| Concrete / Brick | Expansion Sleeve | 5:1 Ratio |
| Ceramic Tile | Multi-material Plug | 4:1 Ratio |
Step-by-Step Leveling with Z-Bar Brackets
For LED mirror wall mounting, the Z-bar bracket is the industry standard. It provides a continuous support line, which is essential for heavy mirrors and double vanity configurations.
Single Vanity Setup
- Mark centerline of vanity.
- Set laser level to 1100mm (center).
- Secure bracket with 3 screws.

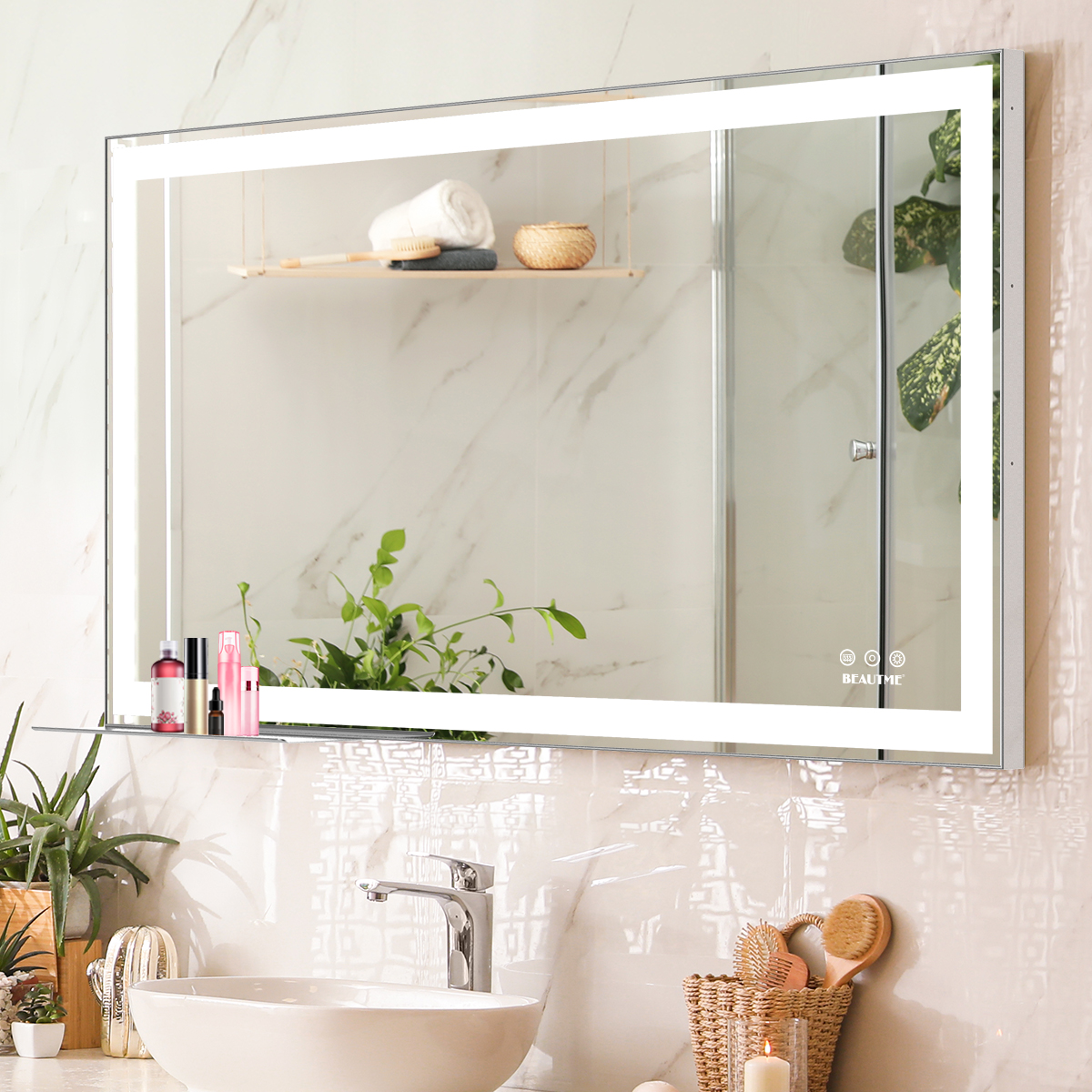

Double Vanity Setup
- Sync mirror heights with laser.
- Maintain 200mm center gap.
- Level brackets across 1500mm+.
Electrical Setup & Smart Function Verification
The electrical connection sequence is the final hurdle. In the US, electrical codes for Zone 2 (Bathrooms) require specific cable management to maintain the mirror's IP44 rating.
Post-Installation Checklist
Common Installation Challenges
Mirror Flickering
Cause: Loose neutral connection or interference from an external dimmer switch. Solution: Check wire nuts and ensure the mirror is on a non-dimmable circuit.
Gap Between Wall and Mirror
Cause: Junction box protruding too far. Solution: Use a recessed single-gang clock box to provide space for the wire connections.
