How to Install a Pedestal Basin: Wall Anchoring, Pedestal Alignment, and Plumbing Hookup
Professional installation of a pedestal basin requires precise wall anchoring and mechanical alignment. This guide details the 100mm bolt specifications, P-trap concealment techniques, and floor shimming methods necessary for a structural and aesthetic finish.

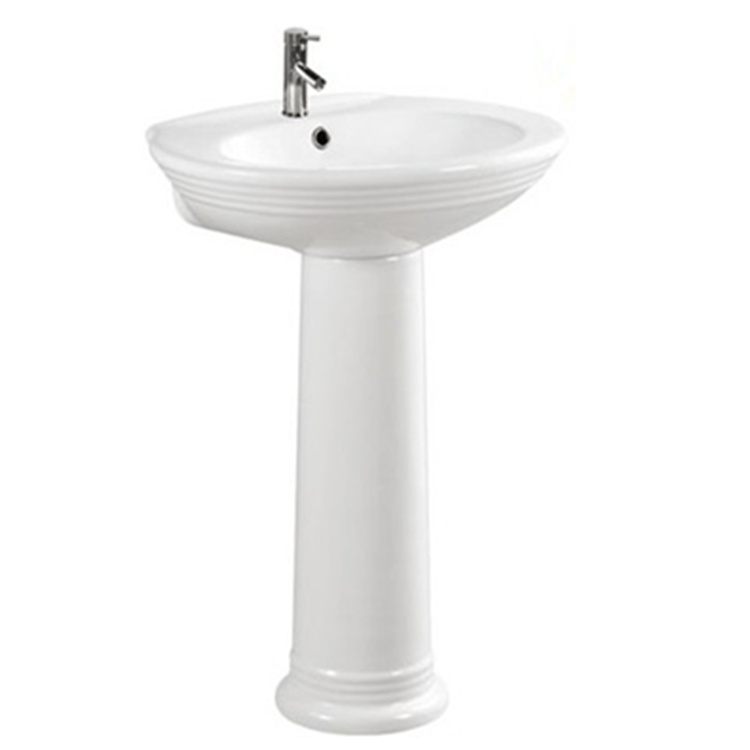

1. Wall Anchoring Sequence: The Structural Foundation
The structural integrity of a pedestal sink is not provided by the pedestal itself, but by the mechanical connection between the basin and the wall. In commercial settings, the basin must support a static load of at least 100kg to account for users leaning on the rim.
Wall Mounting Specifications
| Component | Specification |
|---|---|
| Mounting Bolt Size | M10 x 100mm Lag Bolts |
| Pilot Hole Depth | 70mm to 80mm |
| Standard Rim Height | 800mm - 850mm |
| Wall Backing (Drywall) | 2x6 or 2x8 Timber Block |
Never install the basin by resting its full weight on the pedestal. This creates a high center of gravity that is prone to tipping. Always anchor the basin to the wall first, leaving a 2mm gap above the pedestal for final adjustment.

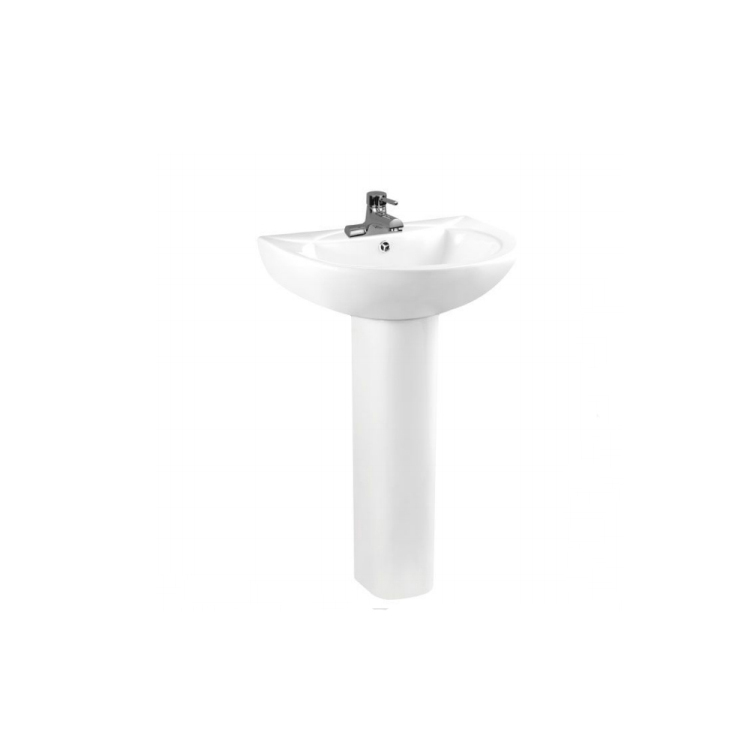

2. Shimming and Floor Alignment
Uneven floors are the leading cause of cracked ceramic and failed silicone seals. If the floor is not perfectly level, the pedestal will tilt, putting diagonal stress on the wall bolts.
Use plastic leveling shims rather than wood or metal. Wood will rot in the humid bathroom environment, and metal can corrode or scratch the ceramic glaze. Once the basin is level, tighten the wall nuts until they are snug against the rubber washers. Finish by applying a perimeter bead of silicone around the base to lock the shims in place.

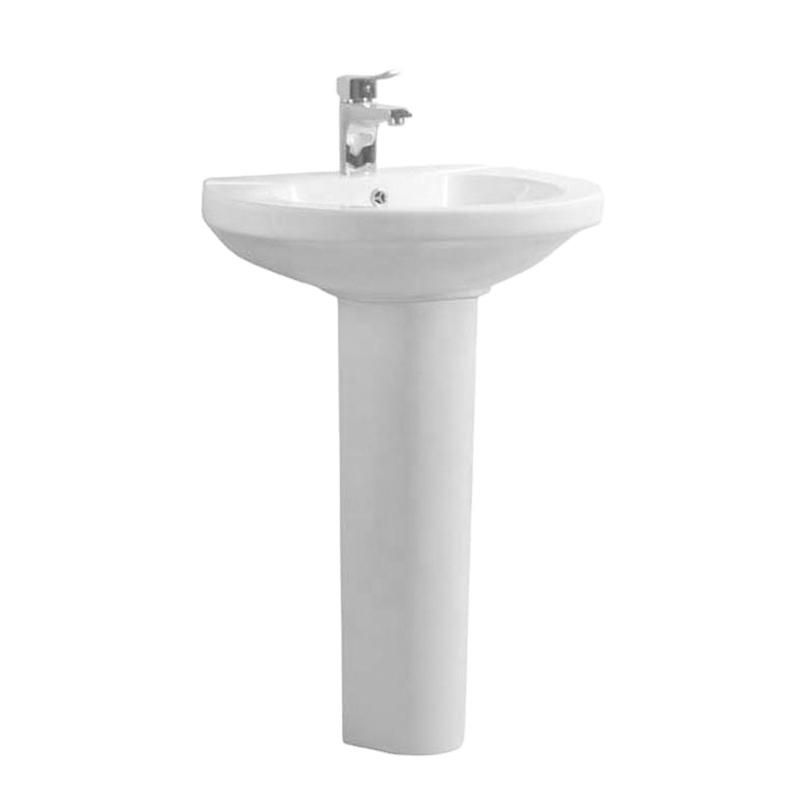

3. Internal Plumbing Routing
The "pedestal" serves as a shroud for the water supply and waste lines. Achieving a clean, hidden look requires specific pipe placement.
P-Trap Clearance and Errors
Common routing errors include using a waste pipe that is too long, which forces the pedestal forward away from the wall. Ensure the P-trap is tucked as close to the wall as possible. In many cases, a shallow-seal trap is required to fit within the ceramic column's interior width of 110mm.
Installation Checklist for Success
- Confirm M10 lag bolts are anchored into structural members.
- Verify basin is level within 1mm over its entire width.
- Check that rubber washers are present between nuts and ceramic.
- Ensure non-compressible shims are used on uneven floors.
- Test P-trap for leaks for 300 seconds before final sealing.
Frequently Asked Questions
Can a pedestal basin be installed on drywall?
Yes, but it requires a structural backing board (2x6 timber) installed between the studs. Drywall alone cannot support the weight.
Why is my pedestal sink wobbly?
Usually caused by an uneven floor. Use plastic shims under the base and verify that the wall bolts are properly tightened.
What is the ideal waste pipe height?
The waste outlet should be centered at 500mm to 550mm above the floor for optimal P-trap alignment inside the column.
